Pinnacle RC Racing

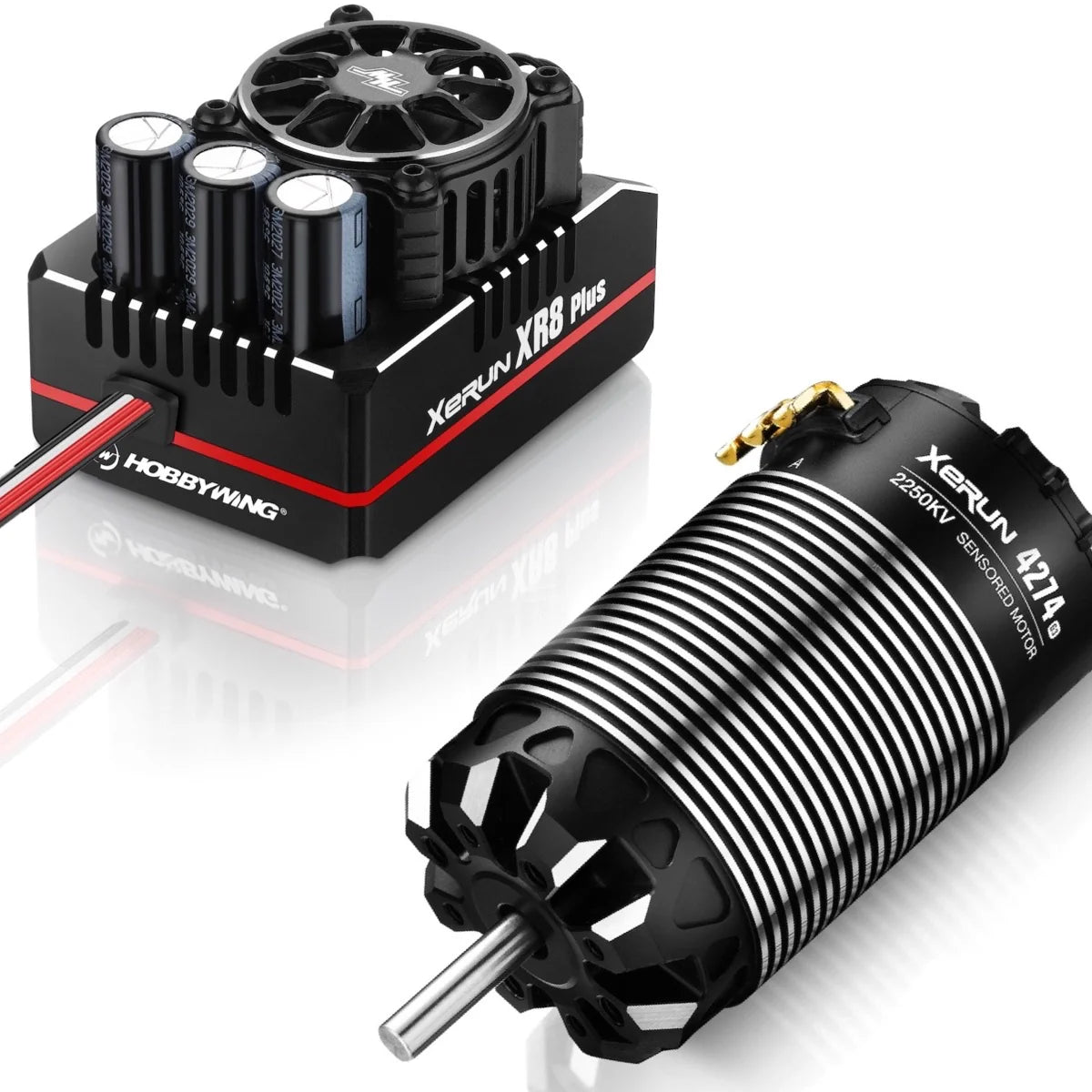

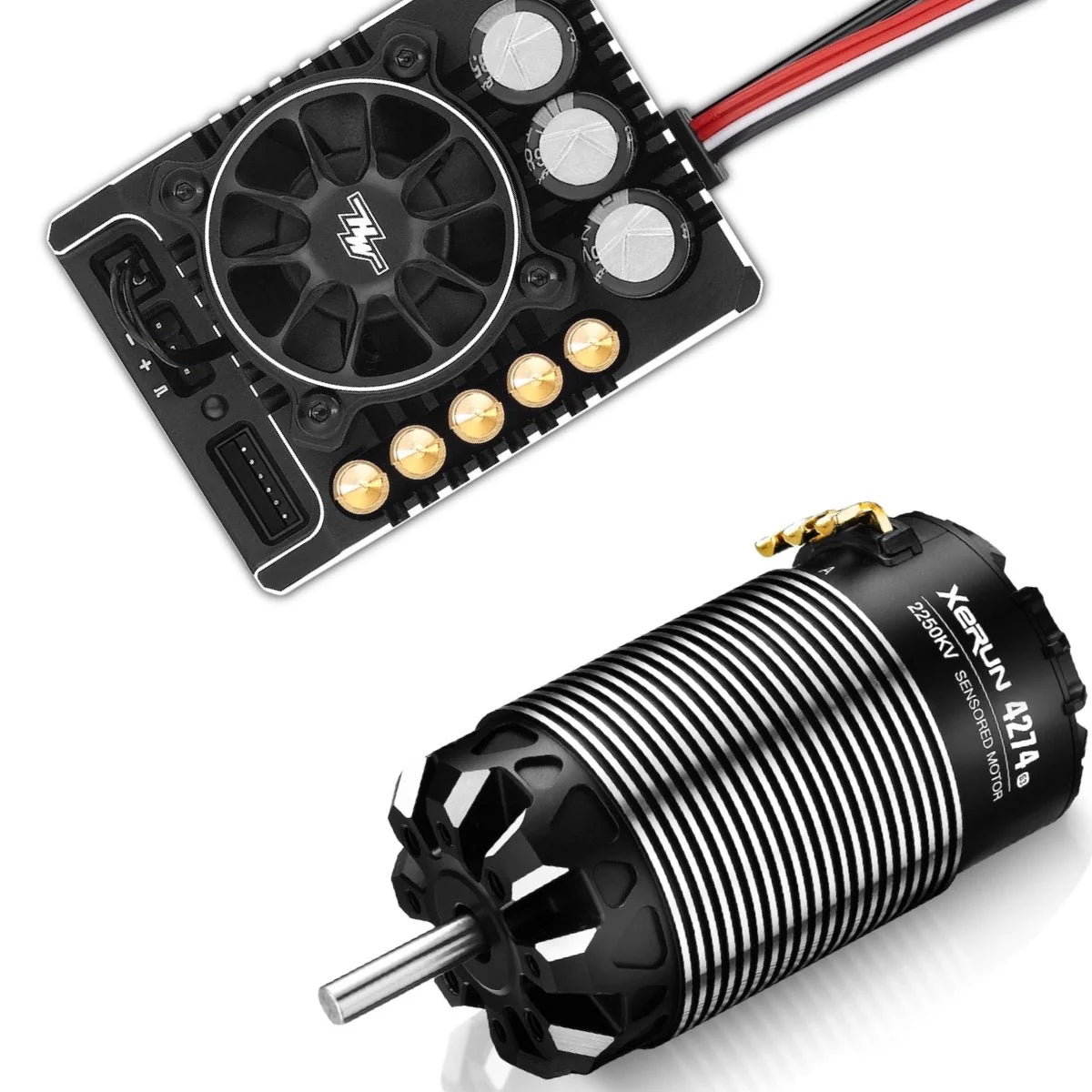

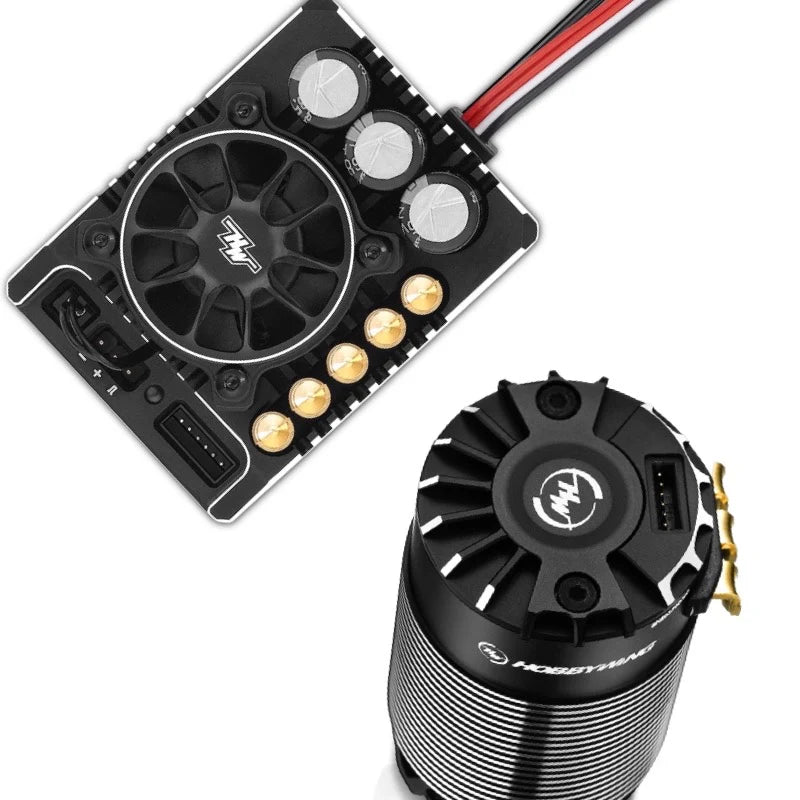

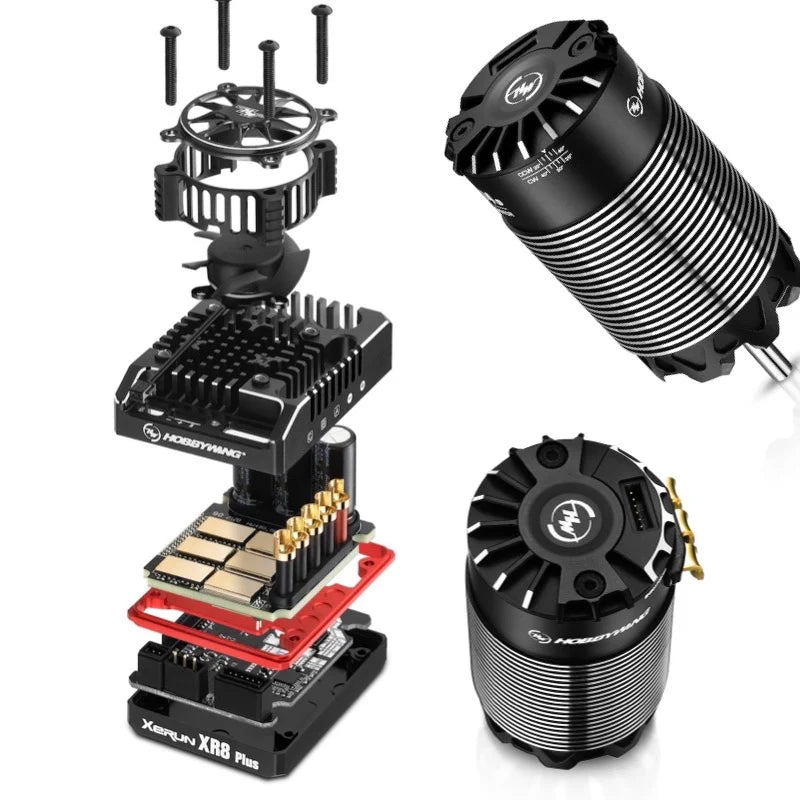

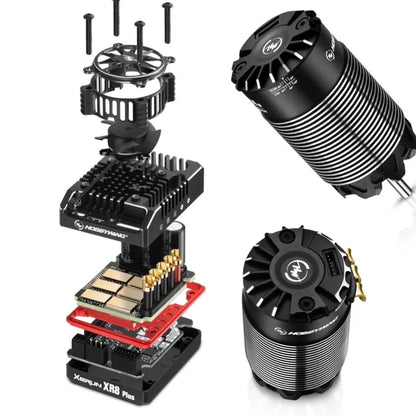

Hobbywing XERUN XR8 Plus G2S 4274 Combo
Hobbywing XERUN XR8 Plus G2S 4274 Combo
Regular price
$309.99 USD
Regular price
$349.99 USD
Sale price
$309.99 USD
Unit price
/
per
Couldn't load pickup availability
What's in the box?
- 1x XR8 Plus G2s ESC
- 1x Xerun 1/8th G3 Brushless Motor 4274
XR8 PLUS ESC system
| Edition Package | XR8 Plus G2S | XR8 Plus |
| P/N | 30113304 | 30113300 |
| Power | 2-6S Lipo | 3-6S LiPo |
| Wire Gauge | 11AWG | 12AWG |
| Cont./Peak Current | 200A/1080A | 150A/950A |
| Motor Limit | With 4S Lipo: KV≤3000 4268/ 4274 Size motor With 6S Lipo: KV≤2400 4274 Size motor |
3S LiPo / 9cell NiMH: 3660 size motor, KV≤4500 4S LiPo/12S NiMH:≤ KV3000 for 4274 size 6S LiPo/18S NiMH:≤ KV2400 for 4274 size |
| BEC Output | 6-8.4V Adjustable, Continuous/Peak Current: 6A/15A(Switch-mode) | 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC) |
| FFD Technology* | YES | No |
| Reversed Polarity Protection | YES | No |
| Programming | OTA programmer / LCD program box |
OTA programmer / LCD program box |
| Size & Weight | 56.1mmx42.1mmx38.5mm 122g (w/wires) |
58.7 x 48 x 36.9 127g (W/O Wires) |
| Cooling fan | Included : 5-8.4V power by BEC |
Included |
| Decals | Included | Included |
*FFD=Frameless Fan Design (Patented)
IMPORTANT NOTE: Although XR8 Plus G2S ESC is equipped with a built-in-reversed polarity protection feature, the external standard cap pack will still be damaged if reverse polarity does occur. For full protection, recommend using the HOBBYWING Non-polarity Capacitor module (purchase separately)
