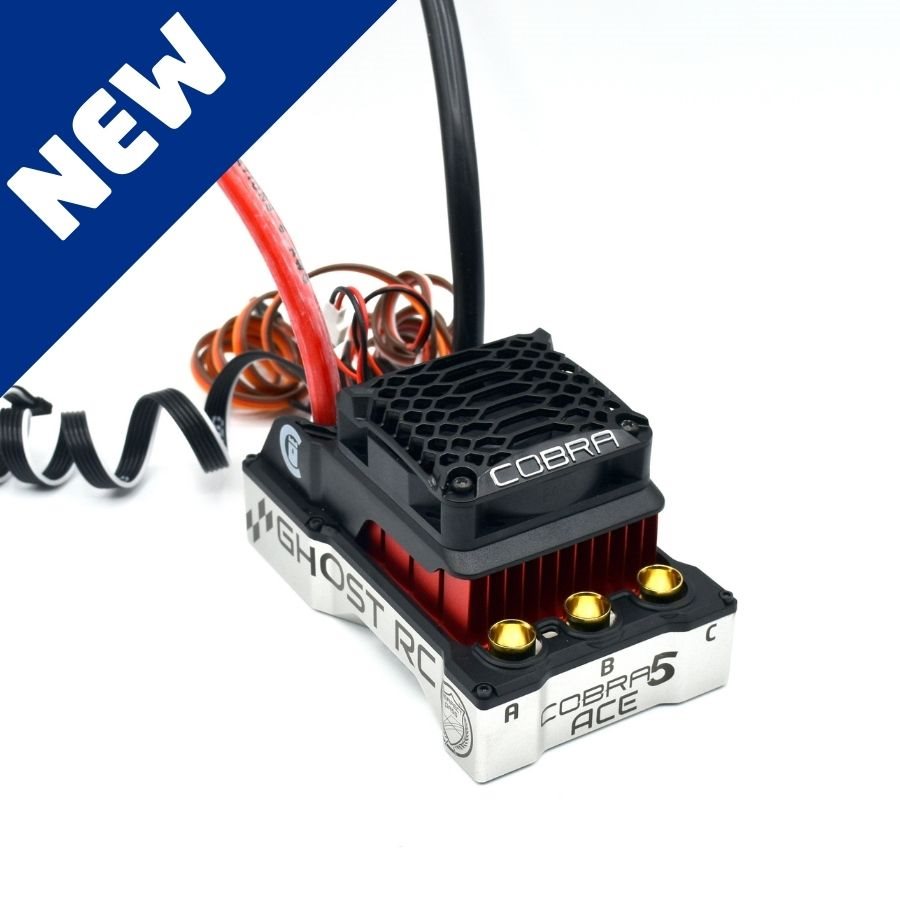

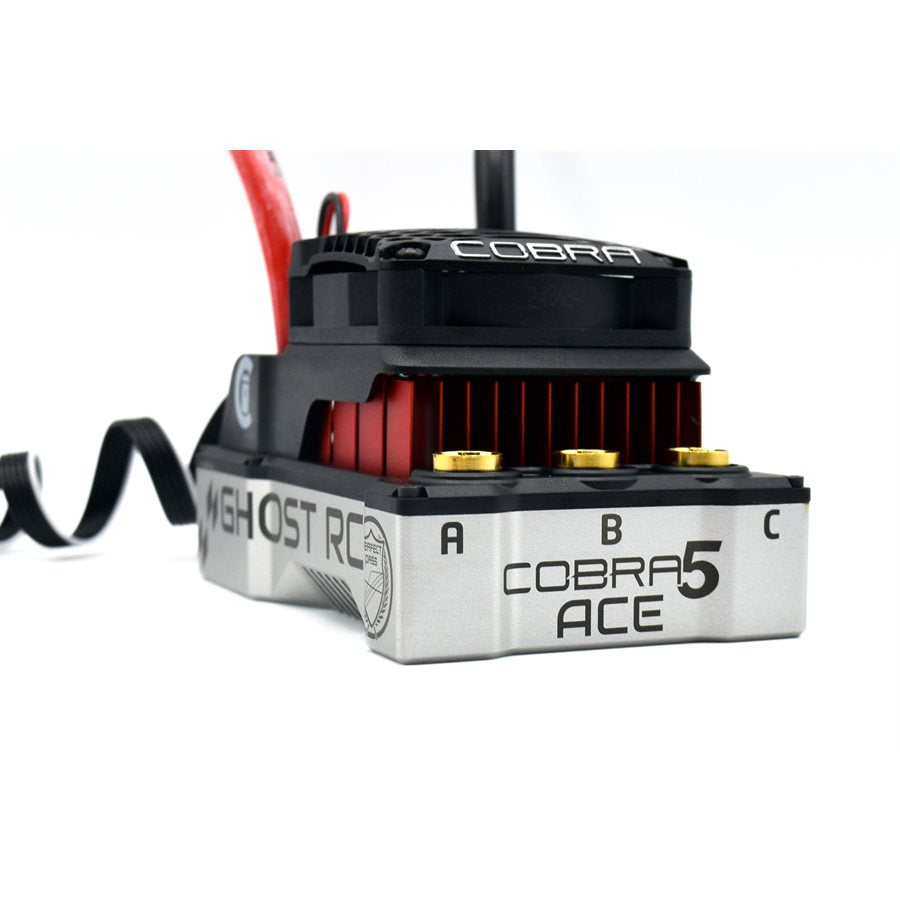

Cobra 5 ACE ESC

Expanded product image

Cobra 5 ACE ESC

Ghost RC

Cobra 5 ACE ESC

Price: $339.95

Product details

Description

The Cobra 5 ACE (C5A) is built on the same groundbreaking fundamentals that made the Cobra 8 ACE a powerhouse in the 1/10th scale Drag racing world. This time, we’ve teamed up with Perfect Pass RC to ensure that the C5A is not just set to dominate 1/7th scale drag racing, but also to shatter records in speed running!

With software enhancements you're already familiar with from the Cobra 8 ACE, we’ve integrated the Perfect Pass RC time-based throttle ramp for unparalleled consistency during speed runs.

Limits? Forget them! The Cobra 5 ACE is an all-out unlimited 8s beast, designed to unleash your full potential. When you’re chasing records or the win light, nothing should hold you back! ---

**SPECS:**

- **BATTERY:** Min: 3S LiPo; Max: 8S LiPo, 33.6V

- **WEIGHT:** 13.9 oz. (395 grams)

- **MOTOR CONNECTORS:** 8.0mm female bullets; matching 8.0mm male bullets required.

-**POWER WIRE** 6 AWG.

- **PEAK BEC:** 5.0V - 8.5V adjustable in 0.1V increments; (20A Peak, 5.5V default)

---

**FEATURES:**

- **32-BIT PROCESSOR:** High-performance 32-bit microprocessor provides expanded computing power.

- **DESIGN:** Robust 1:5 scale construction built to withstand the demands of high-speed racing.

- **PROGRAMMING:** Castle Link USB V4 programmer (included) or via Transmitter (limited), Bluetooth adapter (coming soon).

- **TIMING:** 45° boost OR 45° turbo. RPM and Time-based ramping (requires Sensored Motor).

- **PERFECT PASS RAMP:** Programmable throttle acceleration (0.1S to 10S).

- **ENHANCED DATA-LOGGING:** Higher sample rate and more data points with added capacity.

- **G-FORCE METER:** On-board accelerometer logs G-forces during each run.

- **REV LIMITER:** Prevents motor damage in the event of a broken gear or other failure.

- **CURRENT LIMITING:** 100A-600A or Disabled.

- **SENSOR SUPPORT:** Smart Sense Brushless and Sensored only.

---

**Disclaimer:**Due to the intended use of this product, NO WARRANTY IS PROVIDED!!!
